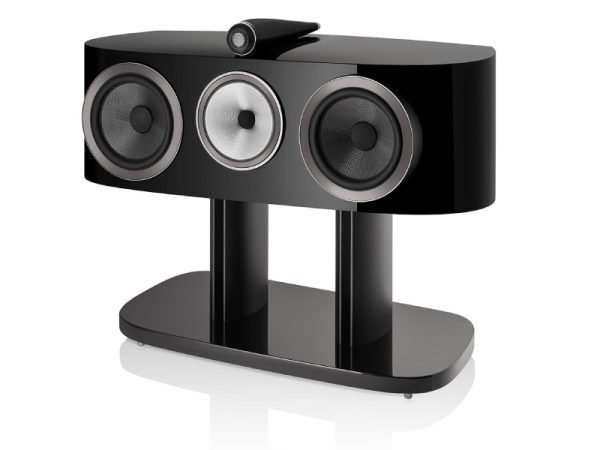

Bowers & Wilkins HTM81 D4

SKU: 714346334209 Brand:

12 000,00 $

Category(ies) : ,

Description

Aerofoil bass cone

Our Aerofoil bass cone technology remains an outstanding solution to the conundrum of combining low mass and high stiffness in bass cones, thanks to its carbon-fiber skin and variable-profile foam core. Now, we have added the foam Anti-Resonance Plug for lower distortion and even cleaner bass.

Diamond dome tweeter

One of our most significant accomplishments over the past two decades, the ultra-stiff, supremely accurate Diamond dome tweeter is the perfect combination of low mass, exceptional stiffness and outstanding accuracy. 15 years after we introduced it, we haven’t found a better tweeter dome technology.

Aluminum bass pods

HTM81 D4 mounts two Aerofoil bass cones in twin solid aluminum bass pods, each of which is clamped into an aluminum plate fixed to the stiffest part of its curved cabinet. Formed as single pieces of metal, these stiff structures provide the perfect mechanical location for those powerful bass cones.

The science of sound

Innovation is at the heart of everything we do. We question, we examine, we understand and then we evolve. We use computer modelling to explore and reimagine every aspect of loudspeaker design. Learn more about all the technologies that combine to make 800 Series Diamond so special here.

Specifications

  • Size & weight

    Dimensions Height: 334mm (13.1 in)
    Width: 847mm (33.3 in)
    Depth: 371mm (14.6 in)
    Net weight 32.20kg (71 lb)

    Technical details

    Technical features Diamond tweeter
    Solid body Tweeter-on-Top
    Continuum™ cone FST
    Anti-Resonance plug
    Biomimetic Suspension
    Matrix™
    Aerofoil™ cone bass units
    Flowport
    Description 3-way vented-box system
    Drive units 1x ø25mm (1in) Diamond dome high-frequency
    1x ø150mm (6in) Continuum cone FST midrange
    2x ø200mm (8in) Aerofoil cone bass units
    Frequency range 20Hz to 35kHz
    Frequency response 28Hz to 28kHz (+/-3dB from reference axis)
    Sensitivity 90dB (on axis at 2.83Vrms at 1m)
    Harmonic distortion 2nd and 3rd harmonics (90dB,1m on axis)
    <1% 80Hz – 20kHz
    <0.3% 100Hz – 20kHz
    Nominal impedance 8Ω (minimum 3.0Ω)
    Recommended amplifier power 50W – 500W into 8Ω on unclipped programme
    Max recommended cable impedance 0.1Ω

    Finishes

    Cabinet finishes Gloss Black
    White
    Grille finishes Black
    Grey
