Description
Design features

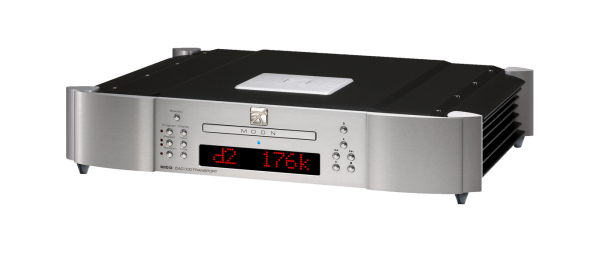

- Proprietary CD drive system mounted on our M-Quattro gel-based 4-point floating suspension.
- Separate digital and analog power supplies, each with their own toroidal transformer.
- Power supply voltage regulation includes i2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 18 stages in all.

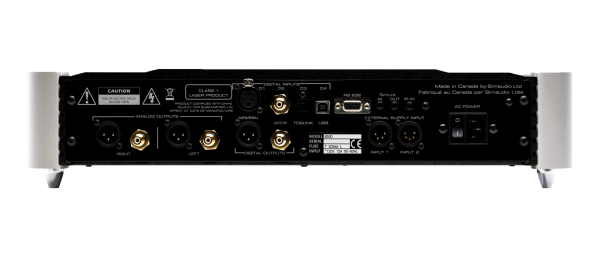

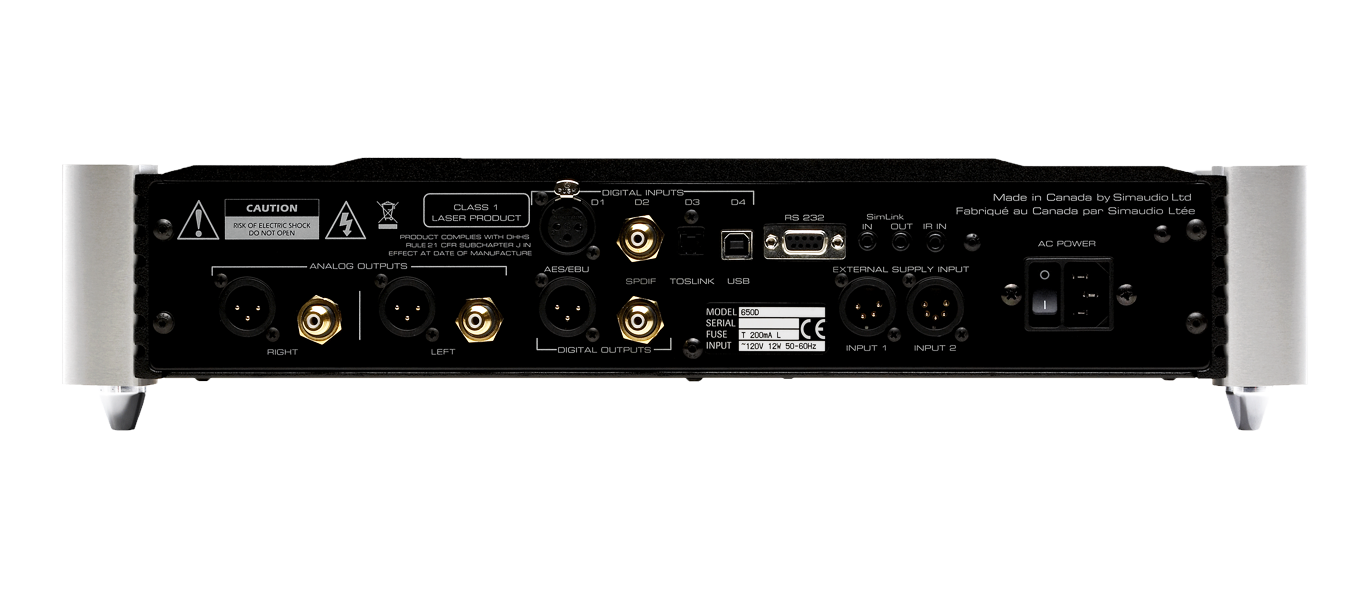

- Four (4) digital inputs (AES/EBU, S/PDIF, TosLink and USB) allowing for a connection to virtually any digital source.
- Two (2) digital outputs – AES/EBU and S/PDIF.
- Fully compatible with 820S external power supply.
Specifications
-
Frequency response (full range)2Hz – 100kHz +0/-3dB
-
THD @ 1kHz, 0dBFS (A-weighted)0.0001%
-
Intermodulation distortion0.0001%
-
Dynamic Range120dB
-
Signal-to-noise Ratio120dB @ full output
-
Channel Separation116dB
-
Intrinsic Jitter1 picosecond RMS
-
Analog Output @ 0dBFS2.0 Volts
-
Analog output impedance100Ω
-
Bit-depth range16 – 24 bits
-
Sampling frequency rates44.1 – 192kHz
-
Shipping weight35 lb / 16 kg
-
Dimensions (width x height x depth)18.75 x 4.0 x 16.8 in
-
47.6 x 10.2 x 42.7 cm
