Description
Design features
- Our “no overall feedback” amplifier circuit design for more accurate musical reproduction.
- An oversized dual-mono power supply.
- “Class A” power output to 5 watts for greater efficiency.
- Gain offset adjustment of ±10dB for each line input.
- Each line input is fully configurable to be “home theater ready”, whereby the 600i’s volume control is bypassed.
Specifications
-
Output Power at 8Ω125 W per channel
-
Output Power at 4Ω250 W per channel
-
Input Sensitivity490mV – 6.0V RMS
-
Input Impedance23,700Ω
-

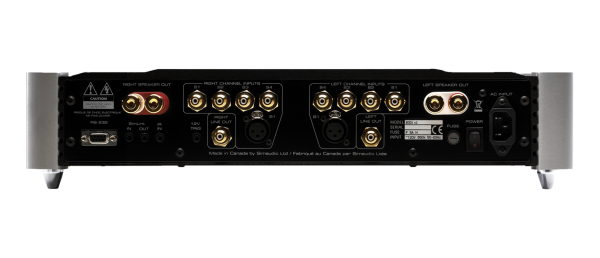

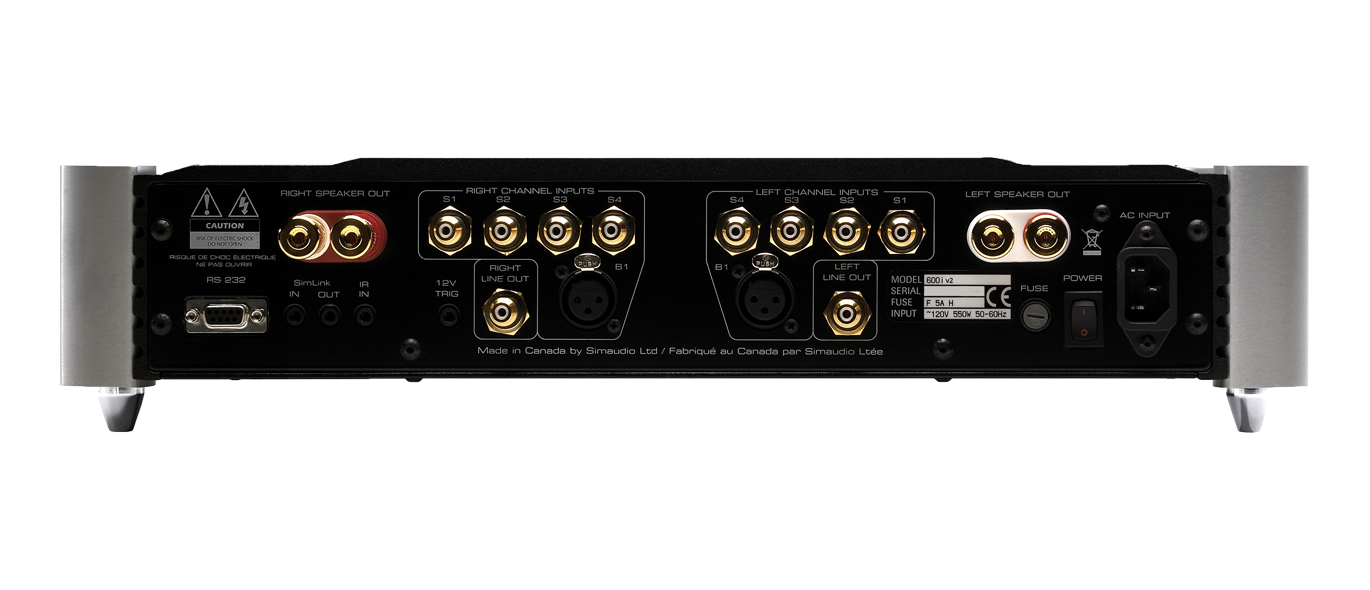

Inputs (RCA / XLR)4 pairs / 1 pair
-
Gain37dB
-
Frequency response (full range)10Hz – 100kHz +0/-0.1dB
-
Crosstalk @ 1kHz-100dB
-
THD (20Hz – 20kHz @ 1 W)0.015%
-
THD (20Hz – 20kHz @ 125 W)0.04%
-
Intermodulation distortion0.02%
-
Shipping weight48 lb / 21 kg
-
Dimensions (width x height x depth)18.75 x 4.0 x 18.1 in
-
47,6 x 10,2 x 46,0 cm
