Description
Fully balanced, discrete, Class A, and featuring a separate Power Supply Unit. NU-VISTA PRE & NU-VISTA PRE PSU We’ve made the decision to enhance our highly acclaimed NU-VISTA 800 circuit. A historic milestone, as for the first time ever, Nuvistor tubes are combined with state-of-the-art fully balanced discrete technology. The result is a preamplifier that delivers performance and sound quality beyond your wildest dreams.
The NU-VISTA legend lives on The use of Nuvistor tubes and the relentless pursuit of the finest sound quality go hand in hand at Musical Fidelity. When you experience our NU-VISTA products, you can sense and hear the passion invested in them. The sound is utterly natural – smooth and silky with remarkable transients. Incredibly soothing yet profoundly engaging. The holographic imaging of your favorite artist in your listening room is closer than you might have expected.

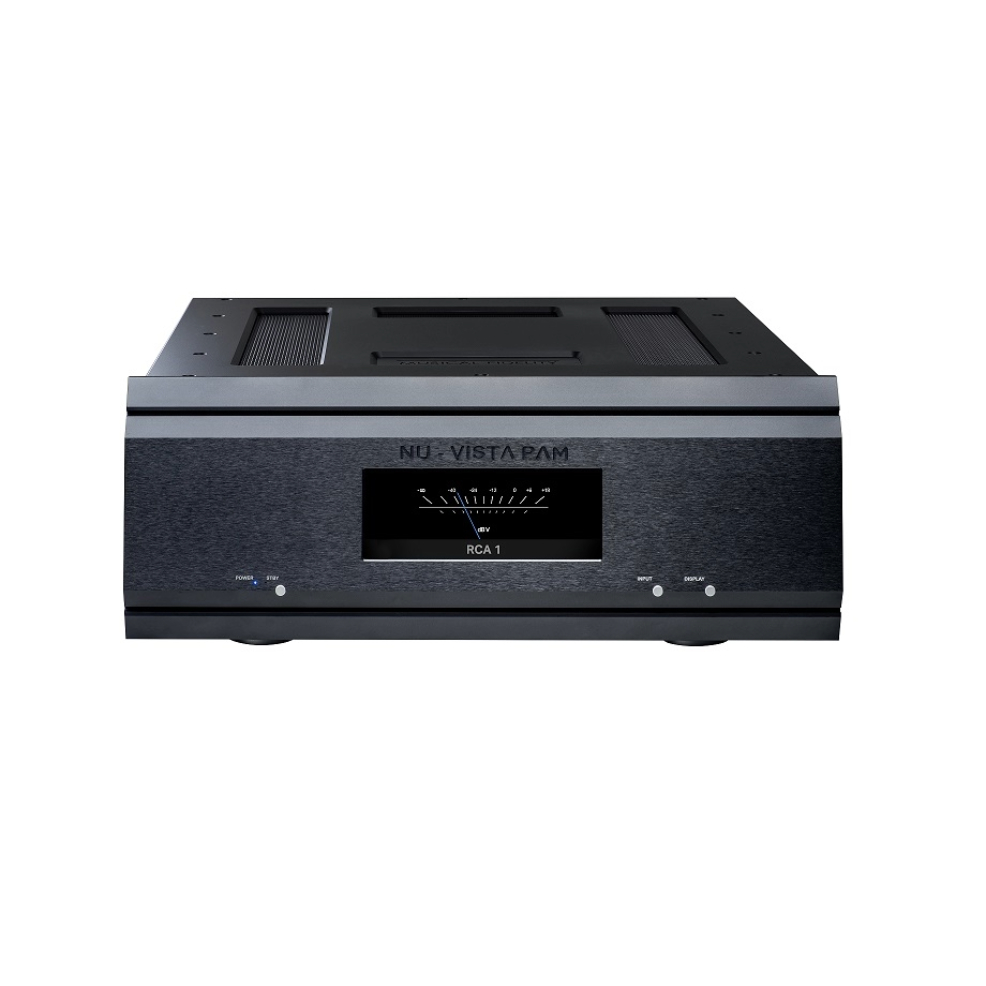

Exceptional build quality The enclosure meets every expectation of Musical Fidelity’s top-of-the-line standards: unwaveringly rigid and solid. This design philosophy extends to the new remote control, custom-made for the NU-VISTA series, and, together with the casing, reflects the “King of the Hill” status. For those seeking the pinnacle of amplification, we’ve decided to build upon our highly acclaimed Nu-Vista 800 circuit with the mono-block power amp Nu-Vista PAM. A historic achievement: For the first time, Nuvistor tubes are paired with state-of-the-art fully balanced discrete technology. The outcome is a power amplifier that measures and sounds like a dream. The Nu-Vista Legend lives on The use of Nuvistor tubes and the relentless pursuit of the finest sound quality go hand in hand at Musical Fidelity. When you experience our Nu-Vista products, you can sense and hear the passion invested in them. The sound is utterly natural – smooth and silky with remarkable transients. Incredibly soothing yet profoundly engaging. The holographic imaging of your favorite artist in your listening room is closer than ever.
Amplifier
• High output power, greater than 600W into 8 ohms, 1000W into 4 ohms, 1500W peaks into 2 ohms
• Output Voltage: 69 Volts RMS
• Output Current: 150 Amps peal to peal
• Damping factor: 180
• Output devices: 5+5 pairs per channel
• Gain: 16x (23.5 dB)
• THD+N: < 0.003 % typical, 20Hz to 20 kHz
• Signal / noise ratio: >108dB ‘A’-weighted
• Input impedance: 100 k Ohms
• Input sensitivity for full output: 4.3 Volts RMS
• Frequency response: + 0, –1dB, 5Hz to 50 kHz
In & Output
• 4 fully independent inputs: 2x RCA & 2x XLR
• 2 loop through outputs: 1x RCA & 1x XLR
• Speaker outputs: 2 pairs 4mm banana plug/binding posts
• Trigger input and output: 3.5mm mono jack socket
• Trigger level ±5V to ±12V
General Information
• Weight PAM: 27kg net (35kg)
• Weight PAM PSU: 40kg net (50kg)
• Dimensions PAM (WxHxD): 483 x 187,5 x 475 (494 with connectors)
• Dimensions PAM PSU (WxHxD): 483 x 187,5 x 475 (478 with connectors)
• Mains voltages: 115/230VAC 50/60Hz (factory pre-set); 100VAC 50/60Hz (alternative)
• Consumption <0.5W in standby mode; 130W on and idle; 2150W maximum
