Description

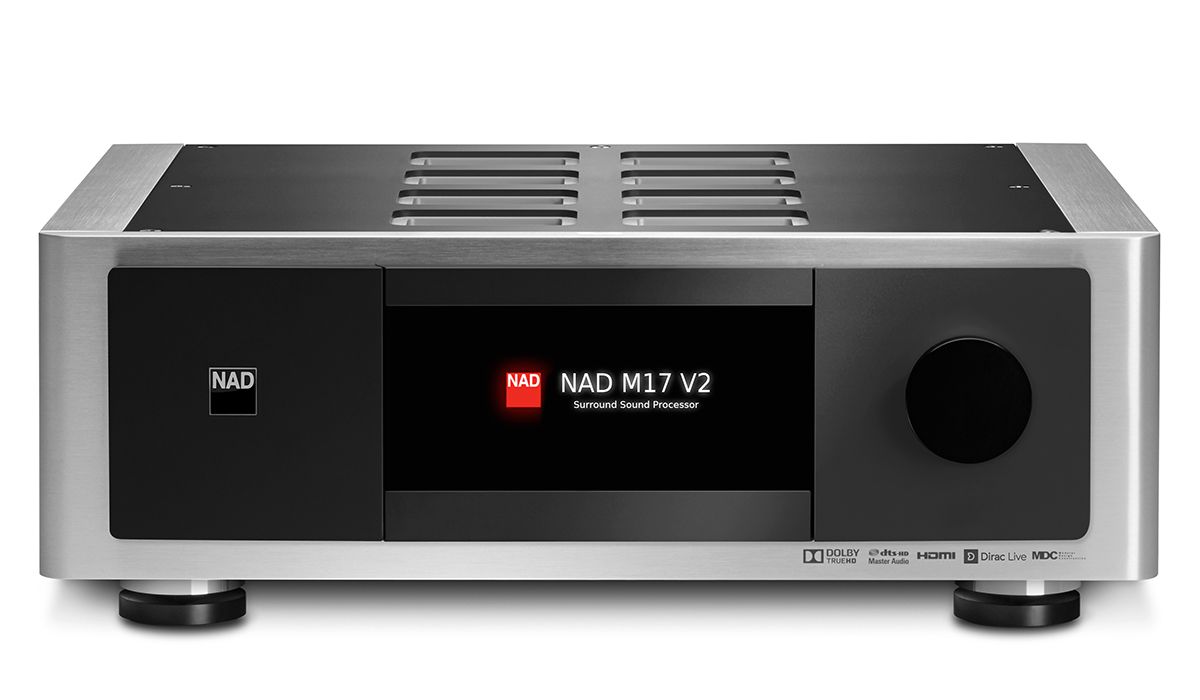

The M17 V2 carries on the enviable task of representing NAD’s finest surround sound performance. Infinite possibilities await thanks to the M17 V2’s most impressive feature, Modular Design Construction (MDC), NAD’s proven method for preventing premature obsolescence. Dolby Atmos®, DTS:X and DTS-HD™ Master Audio combine with Dirac Live® Room Correction to deliver hyper-realism that captures every dimension of a performance. Add bit-perfect 4K UHD video processing and the M17 V2 delivers the most accurate sound and image experience you’ve ever had. The M17 V2 is second-to-none in terms of flexibility and up-to-the-minute digital technology.
The M17 V2 offers full HDMI video switching and surround sound decoding along with 11.1 balanced outputs. Brimming with a full complement of sophisticated features like the high resolution lossless surround formats from Dolby TrueHD, DTS: X and DTS-HD Masters Audio decoding, and now object-based audio with Dolby Atmos, the M17 provides the highest levels of performance. The surround mode of the source material is automatically detected via the digital inputs of the M17 V2, and the most advanced form of decoding, based on your setup, is switched in. Conversion of the encoded digital bitstream is performed with high resolution and extremely linear D/A converters carefully selected for their performance capabilities.
Fully Featured Surround
The M17 V2i offers full HDMI video switching and surround sound decoding along with 11.1 balanced outputs. Brimming with a full complement of sophisticated features like the high resolution lossless surround formats from Dolby TrueHD, DTS: X and DTS-HD Masters Audio decoding, and now object-based audio with Dolby Atmos, the M17 provides the highest levels of performance. The surround mode of the source material is automatically detected via the digital inputs of the M17 V2i, and the most advanced form of decoding, based on your setup, is switched in. Conversion of the encoded digital bitstream is performed with high resolution and extremely linear D/A converters carefully selected for their performance capabilities.
Flexible Setup
The latest HDMI features, including HDCP 2.2, 4:4:4 colour resolution, High Dynamic Range video support, and CEC/ARC, are all included. Digital inputs and outputs are available in both coaxial and optical formats to make it easy to attach all your digital sources. With BluOS® we have also made it easy to add more speakers for listening to music in additional rooms. IR repeaters, 12V triggers to automatically switch amplifiers on and off, and an RS-232 data port makes it easy to connect to highly advanced automated control systems, such as Crestron and Control4. Thoughtful features like discrete On and Off codes, direct access to inputs and FM station presets facilitates the integration of the M17 V2i into elaborate remote control systems.
Master Quality Authenticated
Master Quality Authenticated (MQA) is a revolutionary end-to-end technology built into every BluOS Enabled amplifier to capture and deliver MQA music to your speakers in the purest quality. All BluOS Enabled players and systems include a powerful decoder and audio renderer for the millions of the MQA encoded songs, The MQA logo shown in the BluOS app indicates that the unit is decoding and playing an MQA stream or file, and lets you know that you are hearing exactly what the artist recorded and approved in the studio.
World’s Most Sophisticated Digital Room Correction
Dirac Live® and its powerful room correction software is built in to the M17 V2i, including its own calibrated measurement microphone and Dirac Live Pro. Advanced users can build the perfect listening environment that corrects for both the timing and colourations in sound, including the ability to create custom target curves for room response and the option to choose from a variety of third-party calibrated microphones.
The BluOS Advantage
A unique among high-end AV Processors, BluOS®, the advanced operating system and music management software shared with NAD’s sister brand Bluesound, is included in the M17 V2i. When connected to the Internet via Ethernet or Wi-Fi, the M17 V2i has access to thousands of Internet radio stations and over a dozen high quality music services including Spotify, Amazon Music, Tidal, Deezer, and many more. With full support for Master Quality Authenticated (MQA) technology, the M17 V2i has the highest resolution audio performance available combined with the highest definition video performance.
CONNECTIONS
LINE INPUT/PRE OUT
- HDMI
- Up to 4K UHD
- Coaxial
- 0.5 Vpp
- Ethernet
- RJ45 10/100/1000 Ethernet
LINE LEVEL INPUT
- Input Impedance (R and C)
- 56kΩ + 220pF
- Input Sensitivity
- 40mV (ref. 500mV out)
- Maximum Input Signal
- >8Vrms
- Signal/Noise Ratio, A-weighted
- >90dB (ref. 500mV in, 500mV out, volume set to unity gain)
- >80dB (ref. 2V out, volume maximum)
- Channel Separation
- >70dB (ref. 1kHz / 10kHz)
- Frequency Response
- ±0.3dB (ref. 20Hz – 20kHz, Tone Active)
- ±0.3dB (ref. 20Hz – 20kHz, Tone Defeat)
- Frequency Response (subwoofer out)
- 10 – 200Hz (ref. -3dB)
OUTPUT
XLR
- Maximum output level
- >8 Vrms into 600 Ω
- THD (CCIF IMD, DIM 100)
- <0.005% (ref. 20 Hz – 20 kHz, 2 V out)
- Output impedance
- <100Ω
RCA
- Maximum output level
- >4 Vrms into 600 Ω
- THD (CCIF IMD, DIM 100)
- <0.005% (ref. 20 Hz – 20 kHz, 2 V out)
- Output impedance
- <100Ω
Tone Controls
- Treble
- ±10dB at 10kHz (ref. 2V in, 2V out)
- Bass
- ±10dB at 100kHz (ref. 2V in, 2V out)
GENERAL
- Standby power
- <0.5W
- Unit Dimension (WxHxD) – Gross*
- 435 x 156 x 386mm
- 17 1/8 x 6 3/16 x 15 1/4 inches**
- Net Weight
- 10.9kg (24lb)
- Shipping Weight
- 17.5kg (38.6lb)
