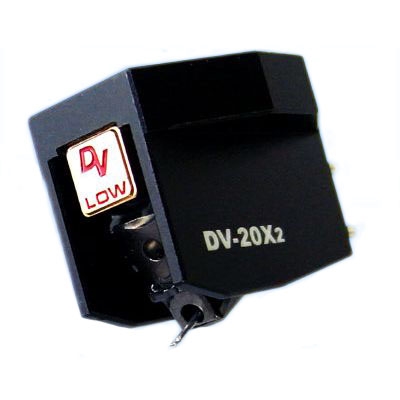

Dynavector 20X2 H/L

Cartridge

UGS : 20X2 H/L Catégories : , Marque:

Description

Specifications

Type High/Low output moving coil cartridge with flux damper and softened magnetism
Output Voltage 2.8mV / 0.3mV (at 1KHz, 5cm/sec.)
Channel Separation 25 dB (at 1KHz)
Channel balance 1.0 dB (at 1KHz)
Frequency response 20 – 20,000Hz (± 1dB)
Compliance 12 mm/N
Tracking force 1.8 – 2.2 g
Impedance 150 ohms / 5 ohms
Recommended load impedance > 1,000 ohms / > 30 ohms
Cantilever 6mm length, hard aluminium pipe
Stylus tip Micro Ridge Nude diamond
Weight 9.2 g
