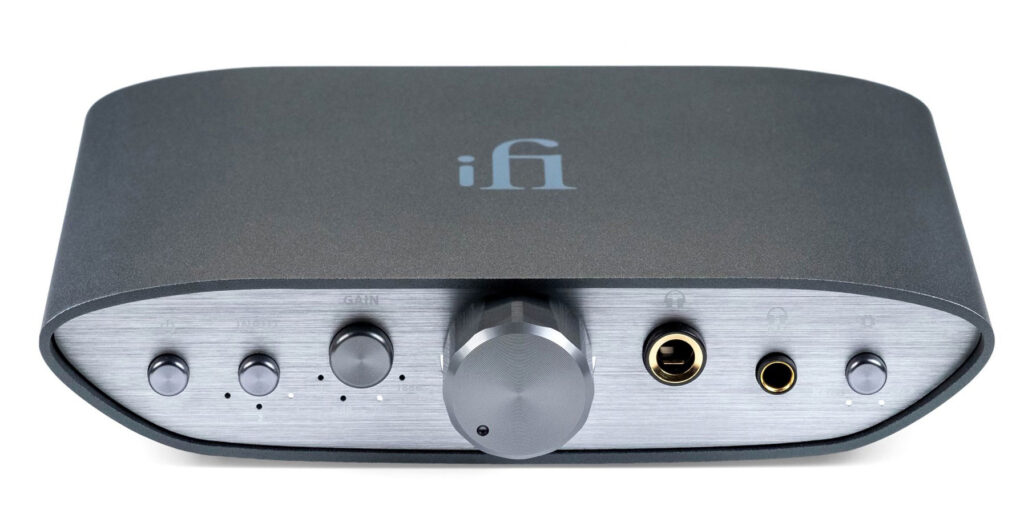

iFi audio ZEN CAN

1,600mW. Battleship headphone amplifier.

UGS : ZEN CAN Catégories : , Marque:

Description

Inputs 4.4mm Pentacon BAL
RCA L/R Socket SE
3.5mm Jack SE
4.0V nominal @ 0dBFS, 24 kOhm Zin
2.0V nominal @ 0dBFS, 1 MegOhm Zin
1.0V nominal @ 0dBFS, 1 MegOhm Zin
Max Output Balanced >15.1V/385 mW (@ 600 Ohm)
>11.0V/1890 mW (@ 64 Ohm)
S-E >7.6V/196 mW (@ 300 Ohm)
>7.2V/1600 mW (@ 32 Ohm)
Output Impedance (HP) BAL
SE
<2 Ohms
<1 Ohm
Zout Line out <200 Ohms
THD & N Balanced
S-E
< 0.0007% (4V out, 600 Ohm, 1kHz)
<0.006% (@ 100 mW/1.27V 16 Ohm)
SNR Balanced
S-E
>120dBA (@ 15.2V)
>118dBA (@ 7.6V)
Max. Input Balanced
RCA
3.5mm
7.4V RMS
3.8V RMS
1.92V RMS
Gain 0dB, 6dB, 12dB and 18dB
Frequency Response 20Hz – 20kHz (+0dB / -0.03dB)
Power consumption No Signal
Max Signal
~5W
~13W
Input voltage DC 5V/2.4A
AC 100 -240V
50/60Hz
Dimensions 160(w) x 117(d) x 35(h) mm
6.3″ x 4.6″ x 1.4″
Net weight 515g (1.14 Ibs)
Warranty period 12 months
