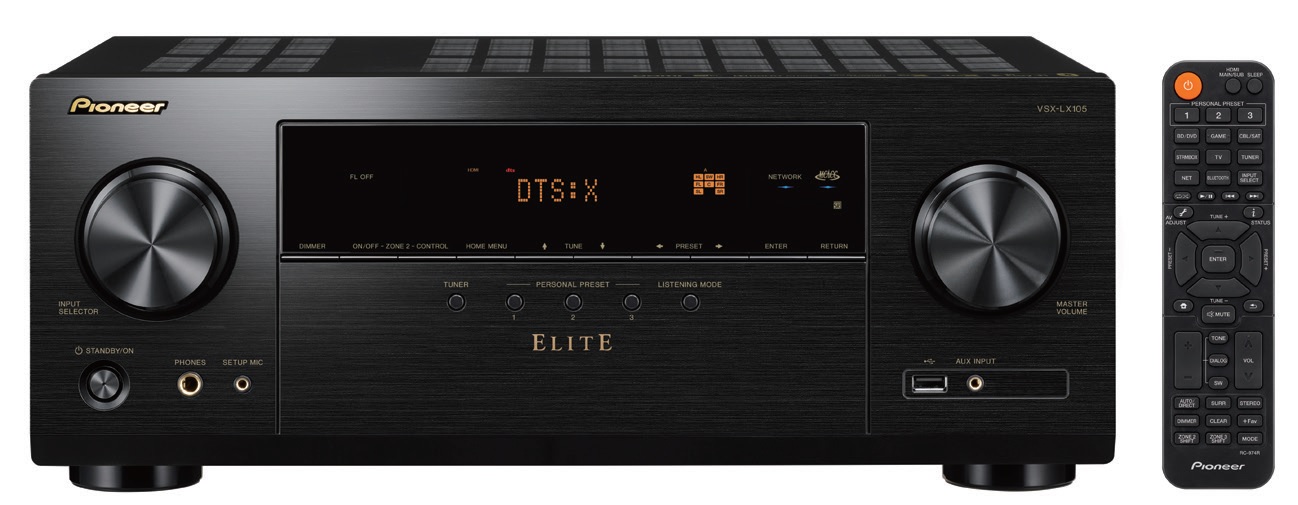

Pioneer Elite VSX-LX105

Indulge yourself in 5.2.2ch surround sound created by Dolby Atmos® or DTS:X, and even without height or surround speakers, you can still experience similar effects by Dolby Atmos Height Virtualizer and DTS Virtual:X. Enjoy superior images with Ultra HD, HDR10, HLG, and Dolby Vision™ pass through. Plus, the VSX-LX105 supports HDMI 2.1*1 for 8K, VRR, ALLM, and QFT pass-through for next-generation video and gaming. You can also stream songs from various sources via Music Server, Bluetooth®, DTS Play-Fi, Sonos system, and Apple AirPlay 2. It is Roon Tested, making music streaming easy from AV equipment. Other highlights include Powered Zone 2 feature with a dedicated DAC, Personal Preset buttons, 2 HDMI outputs, and it works with Alexa/Hey Google for voice control.

Amplification

• Channels: 7
• Amplification Type: Direct Energy
• 210 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
• 100 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven FTC)

Audio Features

• Dolby Atmos®, Dolby Surround Upmixer supports DTS Formats
• DTS:X®, DTS Neural:X® Upmixer supports Dolby Formats
• Reflex Optimizer
• Dolby Atmos Height Virtualizer
• DTS Virtual:X
• Dolby® TrueHD, Dolby Digital Plus
• DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
• DSD Disc (SACD) Playback via HDMI (2.8 MHz/2ch, 5.1ch)
• Digital Quad-Core 32-bit DSP (Cirrus Logic)
• 192 kHz/24-bit D/A Conversion for Hi-Res Audio
• Enhanced Audio Return Channel (eARC) on HDMI OUT (MAIN)
  • MCACC Auto Room TuningPhase Control
  • Subwoofer EQ
  • Advanced Sound Retriever (2ch)
  • Advanced Surround ModesClassical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Mono Music, Front Stage Surround Advance

Video Features

• Support HDMI 2.1 (HDMI IN 1-3) with 8K, VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame transport), DSC (Display Stream Compression), and QMS (Quick Media Switching) pass-through
• Supports HDR10+ and HLG; 8K/60p (4:2:0/10-bit), 8K/30p (4:4:4/10-bit, 4:2:2/12-bit), 4K/120p (4:4:4/10-bit, 4:2:2/12-bit), 4K60p (4:4:4/12-bit) and BT.2020 color; DeepColor™ (36-bit), “x.v.Color”, LipSync, and HDCP 2.3
• Dolby Vision Compatible
• Ultra HD Upscaling (4K to 8K, 1080p to 8K/4K)

Home Network Features

• Works with Alexa supporting multi-room music*2
• Works with Hey Google and Chromecast built-in
• DTS Play-Fi with Pioneer Music Control App*3
• Apple AirPlay 2 with Siri Voice Control
• Works with SONOS supporting multiple Sonos Connect control and Volume Pass Through mode
• Amazon Music HD*4, Pandora®, Spotify, TIDAL, and Deezer Hi-Fi Music-Streaming Services Ready*5
• Internet Radio with TuneIn
• Hi-Res Audio File Playback via USB/Network
• Up to 192 kHz/24-bit ALAC*6, AIFF, FLAC, WAV (RIFF) and 5.6 MHz DSD*7

Convenience Features

• Personal Preset
• Dialog Enhancement
• Dual Band (5 GHz/2.4 GHz) Wi-Fi® Built-in
• Bluetooth® Wireless Technology (Version: 4.2, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/aptX/aptX HD (TX), SBC/AAC(RX)) Built-in
• Pioneer Remote App*3 Ready for Multi-room Entertainment Control and Network Streaming
• User-Friendly GUI with System Setup Menu
• On-Screen Information for Audio, Video and Network
• Web Setup
• Auto Power Off in HDMI Standby Through
• AM/FM Tuner 40 Presets
• Sleep Timer
• User-Friendly Simple Remote Control

Front Terminals

• USB 1 In for USB Drive
• MCACC Setup MIC In (Gold-Plated)
• Audio 1 In (Mini Stereo Jack, Gold-Plated)
• Phones 1 Out (Gold-Plated)

Rear Terminals

• HDMI 6 In (4 Assignable)
• HDMI 2 Out (1 for MAIN, 1 for SUB/ZONE 2)
• Ethernet 1 In
• USB 1 In for USB Drive
• Audio 4 In (Assignable)
• Phono (MM) 1 In
• Digital Coaxial 1 In (Assignable)
• Digital Optical 1 In (Assignable)
• Subwoofer 2 Pre Out
• ZONE 2 Pre/Line Out/ZONE B Line Out
• Speaker 9ch Out (FRONT, CENTER, SURROUND/HEIGHT, HEIGHT/SURROUND BACK/Bi-AMP, ZONE 2)
• IR 1 In
• 12 V Trigger 1 Out
• RS-232C
• FM/AM Antenna

Specifications

• Power Requirements: AC 120 V, 60 Hz
• Power Consumption/Standby: 635 W/0.1 W
• Dimensions (W x H x D): 17-1/8 x 6-13/16 x 14-9/16 inches (435 x 173 x 370.5 mm)
• Weight: 21.6 lbs. (9.8 kg)
• Carton Dimensions: 21-1/8 x 10-7/16 x 18-1/16 inches (536 x 265 x 458 mm)
• Carton Included Weight: 27.6 lbs. (12.5 kg)
