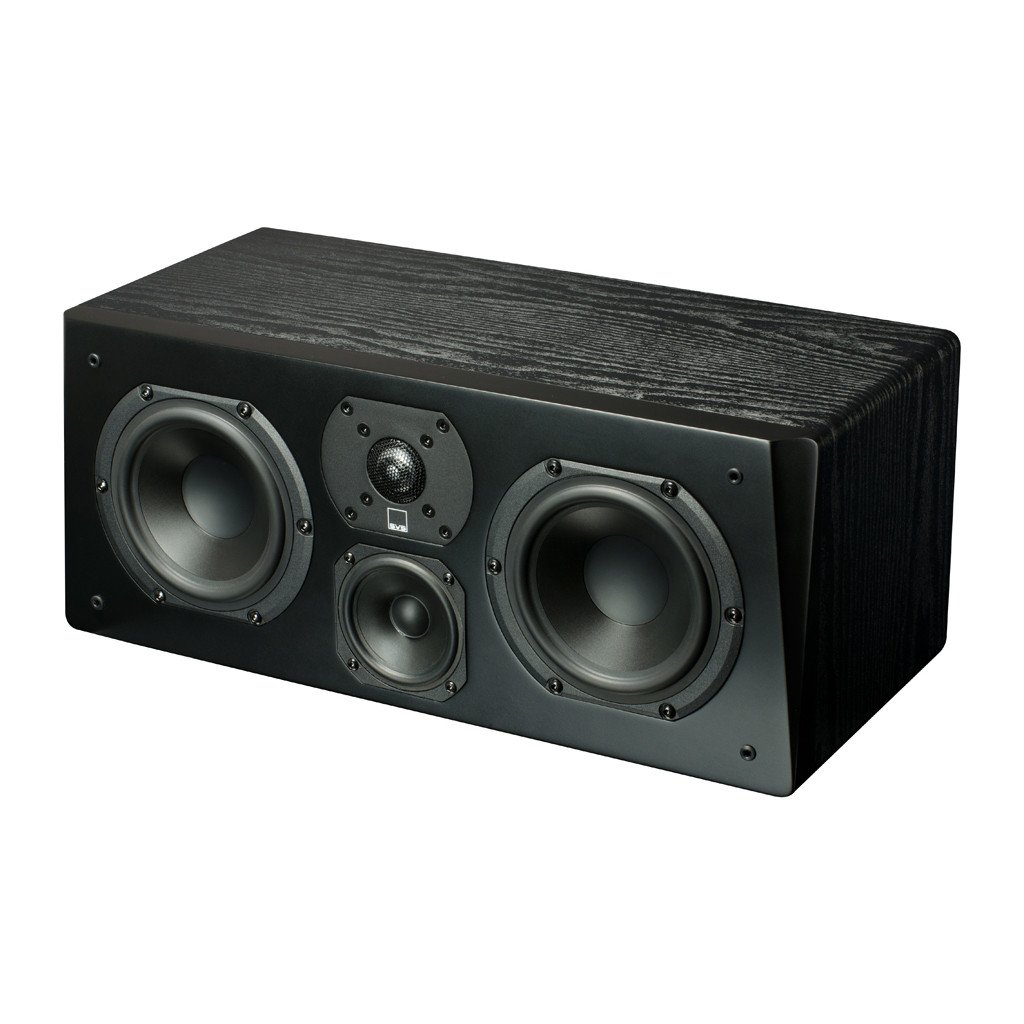

SVS Prime Center

Description

Speaker Specs:

  • Black ash and piano gloss black finish options
  • 5-way binding posts
  • Dual 1” wide-flared rear-firing ports
  • Cloth grille with pin/cup retention system
  • Elastomer stick-on bumper feet (adds 3mm to height)
  • Center Channel Loudspeaker
  • Cabinet Dimensions: 7.6″ (H) X 18.6″ (W) X 8.6″ (D)
  • Overall Dimensions: 7.7″ (H) X 18.6″ (W) X 9.2″ (D) (includes grille and bumper feet)
  • Shipped Dimensions: Shipped Dimensions: 12.2″ (H) X 23″ (W) X 13.4″ (D)
  • Weight Unboxed: 20.2 pounds
  • Shipped Weight: 23.3 pounds

Driver Specs:

  • 1” Aluminum Dome Tweeter:
  • FEA-optimized diffuser for airy and unveiled presentation
  • Aluminum dome for exceptional transient response

3.5” Midrange Driver:

  • Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
  • Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
  • Vented voice coil former minimizes air compression artifacts

Dual 5.25” Woofers:

  • Long stroke motor and suspension for high output
  • Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
  • Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
  • Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
  • Vented voice coil former minimizes air compression artifacts

Crossover & Cabinet Specs:

Crossover:

  • 3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
  • Midrange-to-tweeter crossover: 2.4 kHz (12 dB/octave slopes)
  • Woofer-to-midrange crossover: 350 Hz (12 dB/octave slopes)

Cabinet:

  • Separate sealed midrange enclosure shifts standing waves beyond the driver pass band, improving sound quality
  • Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
  • FEA-optimized cabinet and bracing eliminates resonances
