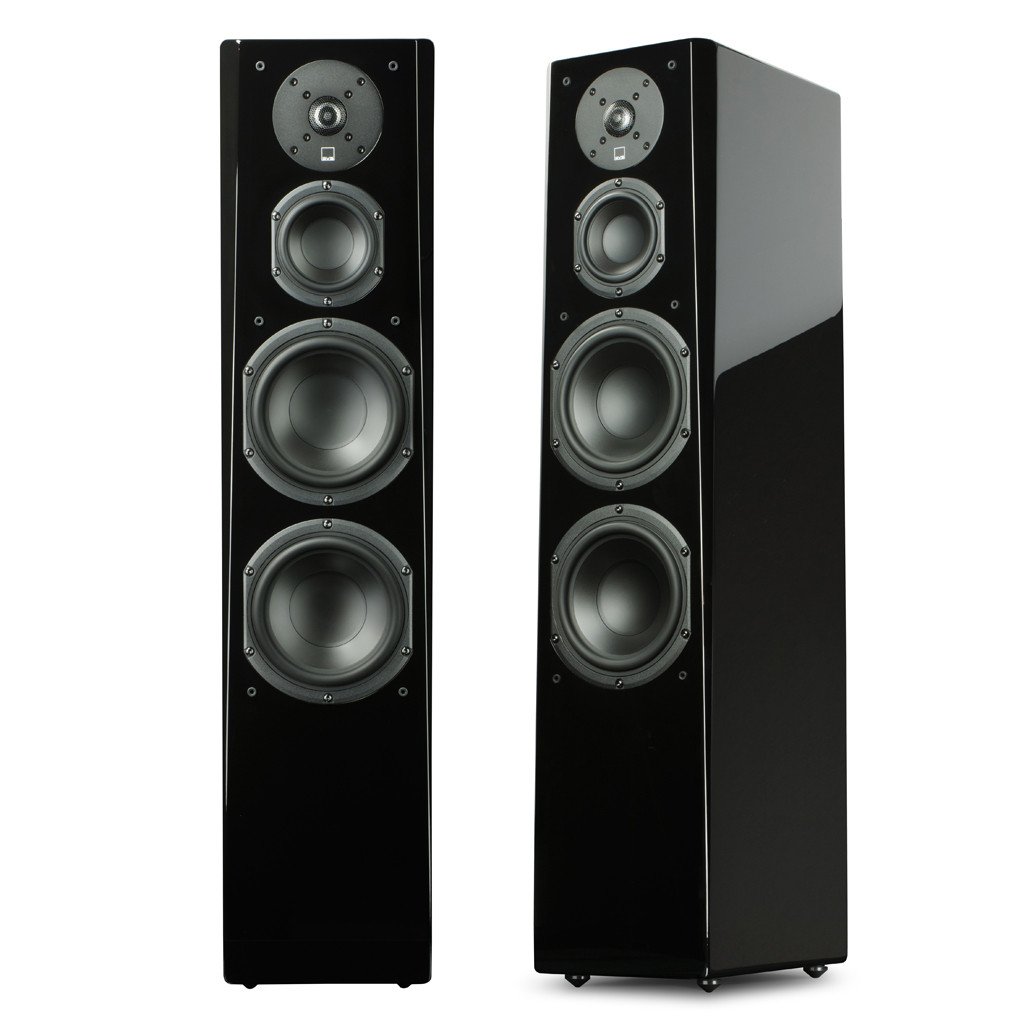

SVS Prime Tower Pair

UGS : N/A Brand:

1 890,00 $2 200,00 $

(Prix par paire)

Catégorie(s) : ,

Description

Speaker Specs:

  • Floor Standing Tower Loudspeaker
  • Black ash and piano gloss black finish options
  • 5-way binding posts
  • Dual 1.7” wide-flared rear-firing ports
  • Cloth grille with pin/cup retention system
  • Elastomer stick-on bumper feet (adds 3mm to height)
  • Spiked metal screw-in feet included – adjustable for level
  • Cabinet Dimensions: 36″ (H) X 8″ (W) X 11.1″ (D)
  • Overall Dimensions: 36.6″ (H) X 8″ (W) X 11.6″ (D) (includes grille and feet)
  • Shipped Dimensions: 41.3″ (H) X 14.1″ (W) X 17.3″ (D)
  • Weight: 40.1 pounds
  • Shipped Weight: 46.3 pounds

Driver Specs:

  • 1” Aluminum Dome Tweeter:
  • FEA-optimized diffuser for airy and unveiled presentation
  • Aluminum dome for exceptional transient response

4.5” Midrange Driver:

  • Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
  • Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
  • Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
  • Vented voice coil former minimizes air compression artifacts

Dual 6.5” Woofers:

  • Long stroke motor and suspension for high output
  • Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
  • Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
  • Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
  • Vented voice coil former minimizes air compression artifacts

Crossover & Cabinet Specs:

Crossover:

  • 3.5-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards.
  • Tapered woofer array optimizes the transition to the midrange driver and reduces vertical axis lobing
  • Midrange-to-tweeter crossover: 2.1 kHz (12 dB/octave slopes)
  • Top woofer (Combined Woofer) to midrange crossover frequency: 350 Hz (12 dB/octave slopes).
  • Bottom woofer low pass frequency: 165 Hz (customized filter Q and slope)

Cabinet:

  • Separate sealed midrange enclosure shifts standing waves beyond the driver pass band, improving sound quality
  • Separate woofer enclosures with optimized port tuning frequencies for smooth and accurate bass response
  • Acoustically transparent and FEA optimized grilles minimize diffraction
  • Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
  • FEA-optimized cabinet and bracing eliminates resonances
