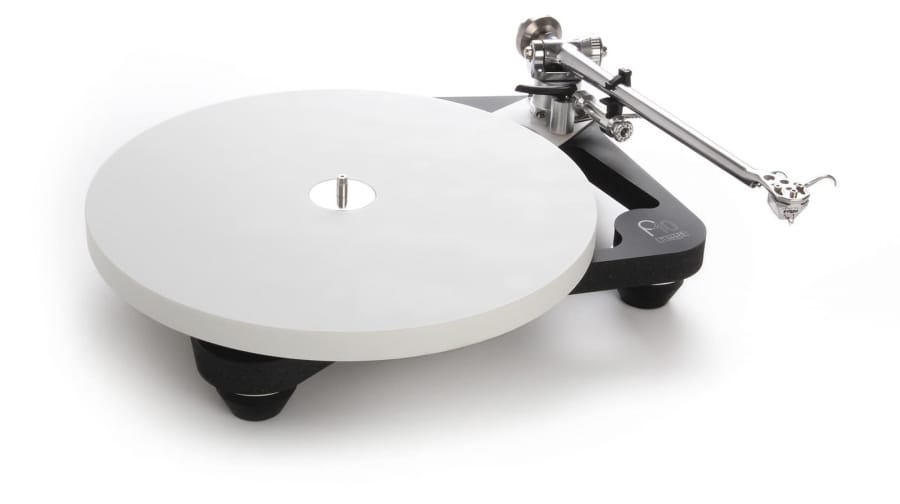

The Planar 10 was inspired by the ultimate Rega turntable, the Naiad. Built around our ultra-light skeletal plinth, constructed from Tancast 8 core and covered in a high-pressure laminate (HPL) skin. The Planar 10 is the first production turntable to use ceramic bracing which provides the ultimate rigid surface for mounting the precision reference RB3000 tonearm and custom central bearing assembly.

The Ultimate in Rega Performance

The Planar 10 is also fitted with a bespoke ceramic oxide platter which is diamond cut during manufacture for ultimate accuracy and speed stability. The Rega 24 V synchronous motor is controlled by our most advanced outboard power supply, the P10-PSU. This supply delivers the ultimate in motor vibration reduction, electronic fine speed adjustment and the convenience of electronic speed change. The Planar 10 is designed to deliver the ultimate in Rega performance by extracting more information from the vinyl groove than ever before.

PRODUCT DETAILS

• ULTRA-LIGHTWEIGHT PLINTH
• DB TECHNOLOGY (DOUBLE BRACE TECHNOLOGY)
• RB3000 TONEARM
• HUB BEARING ASSEMBLY
• CERAMIC PLATTER
• 24 V LOW NOISE MOTOR ASSEMBLY
• EBLT DRIVE BELTS
• PL10 PSU
• DUST COVER

TECHNICAL SPECIFICATIONS

Planar 10 Turntable Dimensions (W x H x D)

420 x 115 x 350 mm (with dust cover fitted)

P10 PSU Dimensions (W x H x D)

218 x 80 x 320 mm

Turntable Weight

4.7 kg

P10 PSU Weight

3 kg
