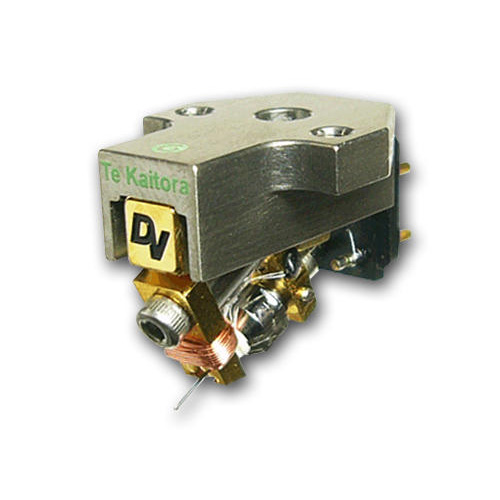

Dynavector Te Kaitora Rua

Cartridge

UGS : Te Kaitora Rua Catégories : , Marque:

Description

Specifications

Type low output moving coil cartridge with flux damper and alnico magnet
Output Voltage 0.26mV (at 1KHz, 5cm/sec.)
Channel Separation 30 dB (at 1KHz)
Channel balance 1.0 dB (at 1KHz)
Frequency response 20 – 20,000Hz (± 1dB)
Compliance 10 mm/N
Tracking force 1.8 – 2.2 g
Impedance 6 ohms
Recommended load impedance > 30 ohms
Cantilever 6mm length solid boron
Stylus tip PF Line contact shape, stylus radius: 7 x 30 micron
Weight 9.8 g
