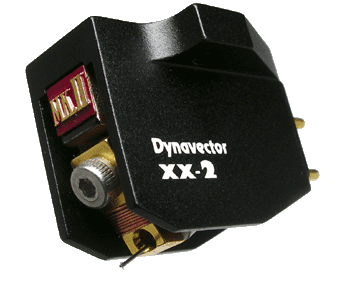

Dynavector XX2 MKII

Cartridge

UGS : XX2 MKII Catégories : , Marque:

Description

Specifications

Type Low output moving coil cartridge with Alnico magnet and Flux damper
Output Voltage 0.28mV (at 1KHz, 5cm/sec.)
Channel Separation 30 dB (at 1KHz)
Channel balance 1.0 dB (at 1KHz)
Frequency response 20 – 20,000Hz (± 1dB)
Compliance 10 mm/N
Tracking force 1.8 – 2.2 g
Impedance 6 ohms
Recommended load impedance > 30 ohms
Cantilever 6mm length 0.3 mm dia. solid boron
Stylus tip PF Line contact shape, stylus radius: 7 x 30 micron
Weight 8.9 g
