Description
DESIGN

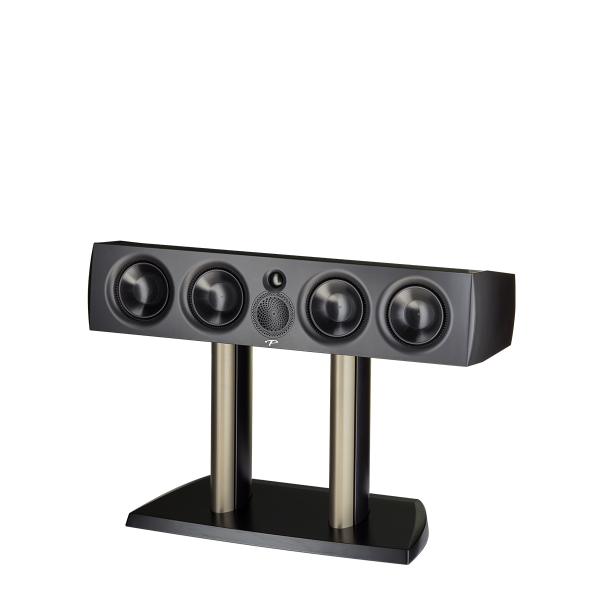

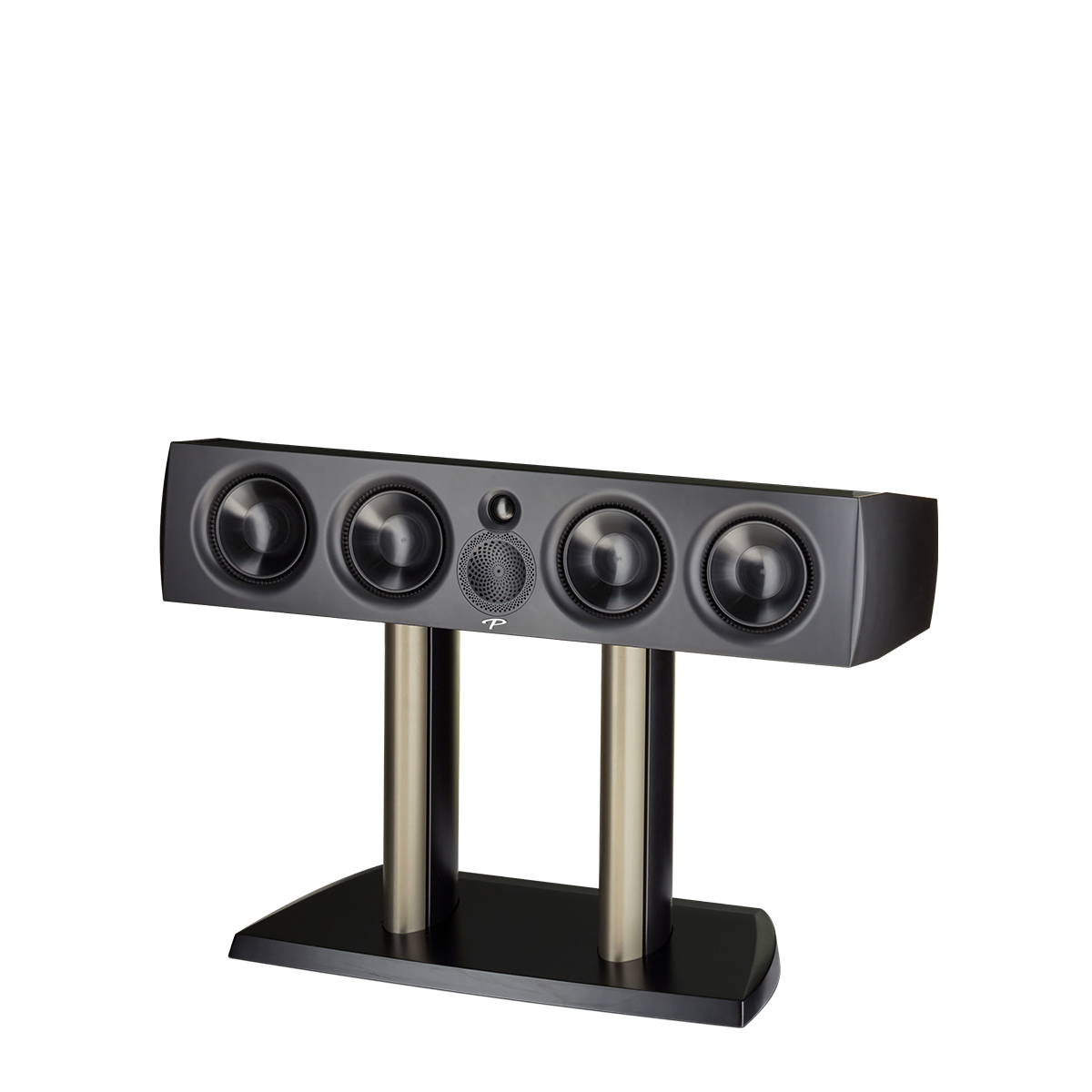

6-driver, 3-way passive radiator bass reflex center channel
FREQUENCY RESPONSE ON-AXIS
±3dB from 60 Hz – 25 kHz
HIGH FREQUENCY DRIVER
1” (25mm) X-PAL™ dome, ferro-fluid damped / cooled, Perforated Phase-Aligning Tweeter (PPA™) Lens
MIDRANGE FREQUENCY DRIVER
4” (102mm) Black Anodized X-PAL™ cone, Perforated Phase-Aligning (PPA™) Lens
LOW FREQUENCY DRIVER
Two 6-1/2” (165mm) ART™ Surround Carbon-Infused polypropylene cones
SENSITIVITY ROOM / ANECHOIC
94 dB / 91 dB
IMPEDANCE
Compatible with 8 ohms
FINISHES
Gloss Black, Gloss White, Espresso Grain
WEIGHT
43 lbs. (19.5 kg)
DIMENSIONS HXWXD
7.75″ × 35.75 × 13.5″ (19.7cm × 90.8 × 34.2cm)
LOW FREQUENCY EXTENSION
40 Hz (DIN)
CROSSOVER
2nd-order electro-acoustic at 2.5 kHz (tweeter/mid) and 700Hz (mid/woofers)
FREQUENCY RESPONSE 30° OFF-AXIS
±3dB from 60 Hz – 20 kHz
SUITABLE AMPLIFIER POWER RANGE
15 – 180 watts
MAXIMUM INPUT POWER
120 watts
PASSIVE RADIATORS
Two 6-1/2” (165mm) ART™ Surround Carbon-Infused polypropylene cones
Specifications are subject to change without notice.
