Description

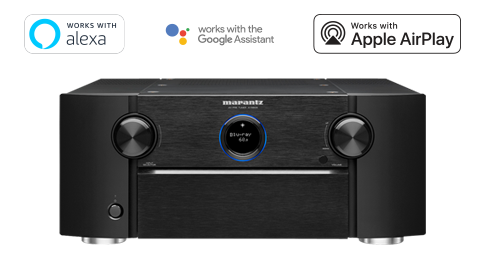

8K 13.2 Channel Full 4K Ultra HD A/V Pre-Amp, Built-in HEOS multi-room technology,Wi-Fi, AirPlay. 13.2 channel XLR and RCA preouts. 8 x HDMI inputs/3 x HDMI outputs (Including 1x 8K HDMI 2.1 Input). Dolby Atmos, DTS:X and Auro 3D. 4K full-rate pass-through, 4:4:4 pure color, HDR and HDCP2.2 support. ISF certification/calibration for picture. Audyssey MultEQ XT32 setup/room calibration. Front panel USB input. iOS connection sharing. Marantz 2016 AVR remote app, ECO mode, HLG (Hybrid Log Gamma) Pass-through capabillity. eARC (Enhanced Audio Return Channel) and IMAX support.
Technical Specifications
Multichannel Surround
- DTS HD Master / DTS:X / DTS:X Pro: Yes / Yes / Yes (update)
- DTS Neo:X / DTS Neural:X: No / Yes (11ch)
- DTS Virtual:X: Yes
- IMAX Enhanced: Yes
- Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music: Yes / Yes / Yes / Yes
- Dolby ProLogic IIz / Dolby Surround: No / Yes
- Auro 3D: Yes
- 360 Reality Audio / MPEG H: No
- Audyssey DSX: No
- Multichannel Stereo: Yes
- Max Number of Processing (Preamp) Channels: 13.2
Sound Enhancements
- Copper Plated Chassis: Yes
- Power Transformer: Toroidal / EI: Yes / No
- Current Feedback Topology: Yes
- Hyper Dynamic Amplifier Modules (HDAM): Yes
- Pure Direct: Yes
- Gold plated RCA terminals: Yes
- Clock Jitter Reducer: Yes
- Audyssey: MultEQ XT32
- Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
- Audyssey LFC: Yes
- Compressed Audio Enhancer: MDAX2: Yes
Network
- HEOS Multi-room and Streaming: Yes
- Bluetooth Re-transmit for Bluetooth headphones: No
- Alexa / Google Voice Assistant / Apple HomePod: Yes / Yes / Yes
- Network Audio Sharing: Yes
- Lossy formats: MP3 / WMA / AAC: Yes / Yes / Yes
- Lossless formats: FLAC / ALAC / WAV: Yes / Yes / Yes
- Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24: Yes / Yes / Yes
- DSD Audio Streaming: Yes (2.8/5.6MHz)
- FLAC HD 192/24: Yes
- WAV 192/24: Yes
- ALAC 192/24: Yes
- Gapless Playback: Yes (FLAC, WAV, ALAC, DSD)
- AirPlay Audio Streaming: Yes (AirPlay2)
- Internet radio: Yes (TuneIn)
- Spotify Connect* / Tidal* / Deezer* / others *: Yes (connect)
- Pandora: Yes
- SiriusXM: Yes
- Other Streaming Services *: Amazon Music HD / Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
- Roon Tested: Yes
- Compatible with Remote APP for Smart Phones: Marantz 2016 AVR Remote
- Compatible with Remote APP for Tablets: Android / iOS / Amazon Kindle
- Ethernet Ports: Yes
- Wi-Fi: Yes
- Bluetooth: Yes
HDMI
- HDMI Inputs: Back / Front: 7 / 1
- HDCP2.3 support: Yes
- HDMI Outputs: Main / Zone: 2 / 1
- Video Conversion Analog -> HDMI: Yes
- Analogue to HDMI scaling: up to 8K 60/50
- HDMI to HDMI Scaling: up to 8K 60/50
- GUI Overlay on HDMI: Yes
- HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB: Yes / Yes
- HDMI 2.0: 3D / 4K / CEC / ARC: Yes / Yes / Yes / Yes / No
- Enhanced ARC: Yes
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: Yes / Yes / Yes / Yes / Yes
- ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
- Variable Refresh Rate / Quick Flame Transport / Quick Media Switching: Yes / Yes / Yes
- 3D Signal Pass-Through: Yes
- 8K signal pass-through / scaling / GUI overlay: Yes / Yes / Yes
- 4K Signal Pass-Through / Scaling / GUI Overlay: Yes / Yes / Yes
- HDMI Pass-Through in Standby Mode: Yes
- Picture Adjust / Noise Reduction: Yes / Yes
- CEC: Yes
- DSD Audio Capability: Yes
- Audio Return Channel: Yes
- Auto LipSync: Yes
Multi-Room / CI
- HEOS Multi-Room Integrated: Yes
- HEOS Link Compatibility: IR/ IP: Yes / Yes
- Multi-Room Zones: 3
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: Yes (2ch) / Yes (2ch) / Yes / Yes
- Zone Audio Output: Speaker / Preout: No / Yes
- Zone HDMI Output from HDMI Source: Yes
- IP Control / RS232 Control / Web Control / App Control: Yes / Yes / Yes / Yes
- IR Flasher In: Yes
- Marantz Remote Bus: Yes
- DC Trigger Output: 2
- HDMI Diagnostics: Yes
