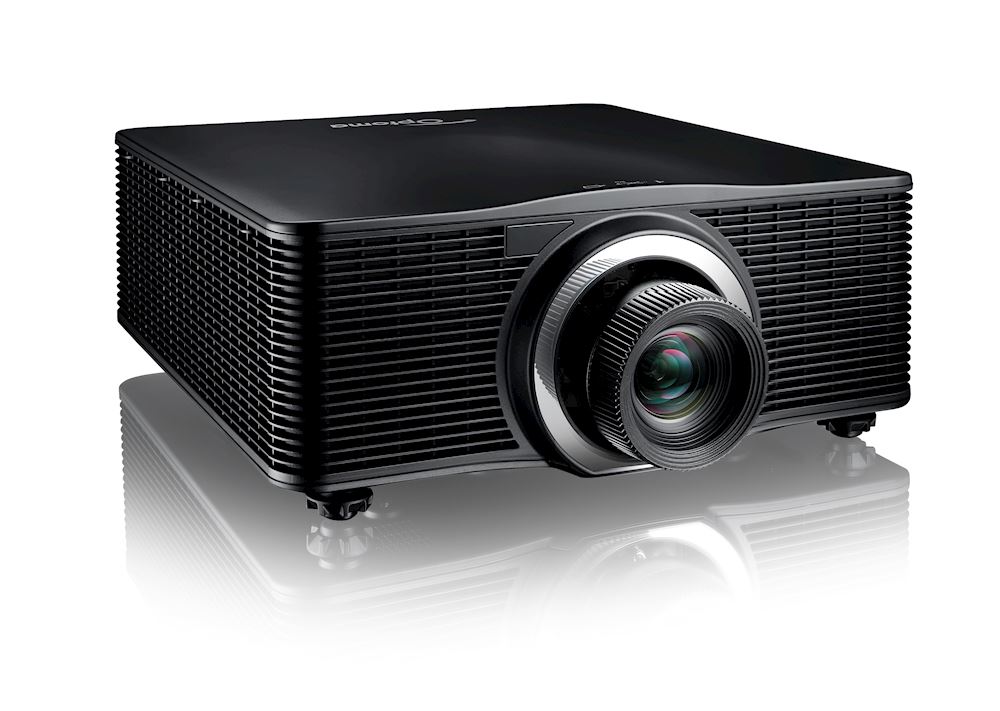

Optoma ZU860

SKU: 796435443795 Brand:

Spectacular image quality, low maintenance and ultimate reliability

12 999,00 $

Description

Spectacular image quality, low maintenance and ultimate reliability

WUXGA, 8500 Lumens, Laser Light Source, Variable depending up lens Throw Ratio, 50.7 lbs 1 x HDMI, 1 x DVI-D, 1 x VGA In, 1 x HDBaseT, 1 x 3G-SDI, 1x RJ45 (LAN), 3  Year  parts and labor limited warranty on the projector with first year express advance replacement, 5-year or 12,000 hour light source warranty (whichever comes first)

The ZU860 combines superior colour with exceptional brightness consistency. The innovative laser technology delivers ultimate colour performance whilst the DuraCore laser light source maintains exceptional brightness consistency.

Delivering up to an astonishing 30,000 hours, this projector achieves superior colour rendition.

Designed for even the most complex professional installations, the ZU860 offers seven interchangeable lens options including an ultra short throw lens and single-projector dome lens for ultimate flexibility.

Specifications

Display/Image

  • Display technology: DLPℱ
  • Resolution: WUXGA (1920×1200)
  • Brightness: 9,600 lumens
  • ANSI brightness: 8,500 lumens
  • Contrast ratio: 2,000,000:1
  • Contrast ratio – dynamic: 6,000:1
  • Contrast ratio – full on/off: 2,000:1
  • Native aspect ratio: 16:10
  • Aspect ratio – compatible: 4:3, 16:9, 16:10
  • Keystone correction – horizontal: +/-20°
  • Keystone correction – vertical: +/-20°
  • Uniformity: 90%
  • Screen size: Dependent on lens

Lamp Info

  • Light source type: Laser
  • LASER life: 30,000 hours

Optical

  • Throw ratio: Dependent on lens
  • Projection distance: Dependent on lens
  • Lens options:
    • BX-CTA16: 0.36 ~ 0.36
    • BX-CTA17: 0.65 ~ 0.75
    • BX-CTA15: 0.75 ~ 0.95
    • BX-CTA01: 0.95 ~ 1.22
    • BX-CTA06: 1.22 ~ 1.53
    • BX-CTA03: 1.52 ~ 2.92
    • BX-CTA13: 2.90 ~ 5.50
    • BX-CTADOME: Dome lens

Connectivity

  • Connections:
    • Inputs: 2 x HDMI, 1 x VGA, 1 x DVI-D, 1 x HDBaseT, 1 x 3D sync, 1 x 3G-SDI
    • Outputs: 1 x VGA, 1 x USB-A, 1 x 3D sync
    • Control: 1 x 12V trigger, 1 x RS232, 1 x Wired remote, 1 x RJ45

General

  • Noise level (min): 32dB
  • Noise level (max): 35dB
  • PC compatibility: HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
  • 2D compatibility: PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)
  • 3D compatibility:
    • Side-by-Side: 1080i50 / 60, 720p50 / 60
    • Frame-pack: 1080p24, 720p50 / 60
    • Over-Under: 1080p24, 720p50 / 60
  • 3D: Full 3D
  • Security: Security bar, Kensington Lock
  • IP rating: IP5X
  • OSD / display languages: 11 languages (Dutch, English, French, German, Indonesian, Italian, Japanese, Portuguese, Russian, Chinese (simplified), Spanish)
  • 24/7 operation: Yes
  • 360° operation: Yes
  • Operating conditions: 5°C ~ 35°C / 41°F ~ 95°F, max altitude M/0ft, max humidity 85%
  • Remote control: Wired ProAV remote
  • Heat dissipation: 2,235 BTU/hour

In the Box

  • AAA Battery
  • AC power cable (3m)
  • Lens cover
  • VGA cable (1.8m)
  • User manual CD
  • Quick start guide

Optional Wireless Models

  • QuickCast Bundle
  • QuickCast starter kit

Networking

  • LAN – control: Yes
  • LAN: Yes

Power

  • Power supply: 100 – 240V, 50 – 60Hz
  • Power consumption (standby): 0.5W
  • Power consumption (min): 300W
  • Power consumption (max): 625W

Weight and Dimensions

  • Dimensions (W x D x H): 19.06″ x 20.83″ x 7.68″
  • Gross weight: 49.82 lbs
  • Net weight: 38.8 lbs
