Description

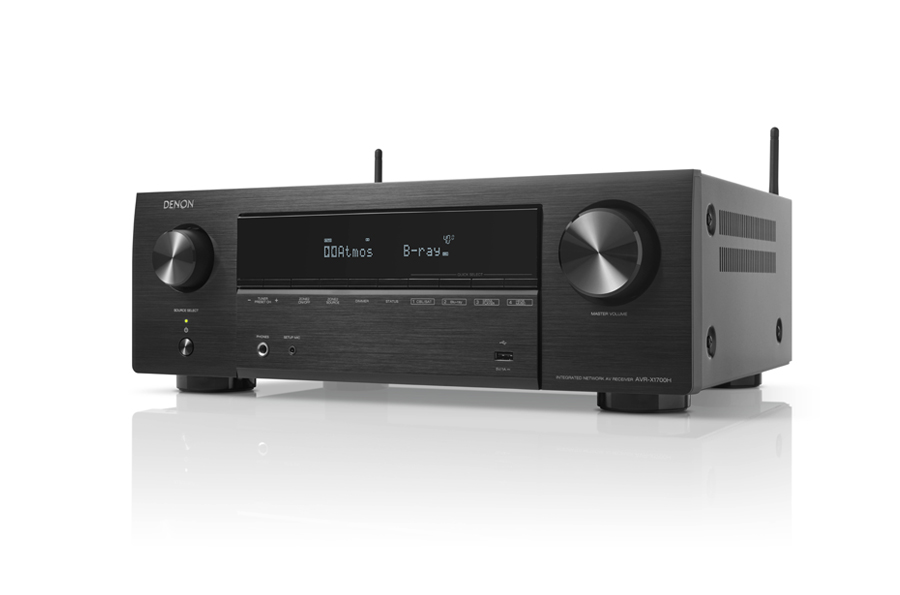

AVRX-1700H
Denon AVR-X1700H 7.2ch 8K AV receiver with 80W per channel fully supports 3D audio formats Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X® and DTS Virtual:X™. It features as the latest HDMI specifications such as 8K/60Hz, select 4K/120Hz pass-through VRR, ALLM, HDR10+ and eARC support.
Powering 4K & 8K home theater
Powerful, discrete 7-channel amplifier
Delivers maximum performance and 80W per channel to provide the classic and dynamic Denon sound experience.
Advanced 8K HDMI video with eARC support
Three 8K inputs support the latest HDMI specifications—8K/60Hz, select 4K/120Hz pass-through, VRR, Dolby Vision™, HDR10+, ALLM.
Full 3D audio support with virtual surround sound
Enjoy immersive 3D audio with Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, and DTS Virtual:X™.
Specifications
- Number of amplifiers: 7
- Power output 8ohm 20Hz-20Khz, 0.08% 2 channels: 80W
- Power output (6ohm 1Khz, 0.7% 2 channels): 120W
- Power output (6ohm 1Khz, 1% 2 channels): 145W
General Features
- Speaker impedance: 4-16Ω/ohms
- Input sensitivity: 200 mV
- Frequency response: 10 Hz – 100 kHz — +1, –3 dB (Direct mode)
- S/N Ratio: 98dB (IHF-A weighted, Direct mode)
- FM section (Tuning frequency range): 87.5 – 107.9 MHz
- AM section (Tuning frequency range): 520 – 1710 kHz
- Power supply: AC 230 V, 50 Hz
- Power consumption in W: 440
- Power consumption without sound (ECO on/off) in W: 29W / 39W
- Weight in kg: 8.6
- 3.5mm audio line-in connection: Yes
- Remote: RC-1244
- Standby power consumption in W: 0.1
- CEC standby power consumption in W: 0.5
- Carton dimensions (L x P x H) in mm: 523 x 435 x 232
- Carton weight (incl. Product) in kg: 10.6
- Available colors: Black/Premium silver (Yes / No)
- Maximum dimensions (L x P x H) in mm: 434 x 339 x 151 mm
Inputs/Outputs
- HDMI input/output: 6 / 1
- Composite input/output: 2 / 1
- PHONO MM input: Yes
- Analog inputs/outputs: 2 / No
- Digital Optical In/Out: 2 / No
- Front audio/composite/opt/HDMI/USB inputs: No / No / No / No / Yes
- Preamp output / power amp input: 0.2 ch / no
- Speaker terminals for multi-room: Assignable
- Headphone output: Yes
- Ethernet: Yes
- AM/FM Tuner: Yes
- USB port / suitable for iPod/iPhone: Yes / AirPlay / AirPlay
- Bi-amplification available: Assignable
- Speakers A/B: Assignable
- Number of speakers: 7
- Subwoofer output: 2
- Multichannel preamp outputs: Yes (0.2)
- Digital outputs: Coaxial / Optical: 2 / 0
- Coaxial (Input / output): 2 / 0
- DAB / DAB+ tuner: No
Multichannel Sound
- Maximum channels (preamp) in processor: 7.1
- DTS HD Master / DTS:X: Yes / Yes
- DTS Neo:X / DTS Neural:X: No / Yes
- DTS Virtual:X: Yes
- Dolby TrueHD / Dolby Atmos: Yes / Yes
- Dolby ProLogic Ilz / Dolby Surround: No / Yes
- Dolby Height Virtualization: Yes
- Multichannel stereo: Yes
- Dialogue optimizer: Yes
Enhancements
- Discrete Power Amplifiers: 7
- Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
- Speaker Setup Presets: 2
- Audyssey: MultEQ XT
- Audyssey APP Support: Yes
- Compressed Audio Restorer: Yes
Network
- Continuous playback: Yes (FLAC, WAV, ALAC, DSD)
- Internet Radio: TuneIn
- Compatible with remote APP: Android / iOS
- Compatible tablet remote application: Android / iOS / Amazon Kindle
- HEOS Multiroom and Streaming: Yes
- Compressed format playback: MP3/WMA/ACC: Yes / Yes / Yes
- Uncompressed formats FLAC/ALAC/WAV: Yes / Yes / Yes
- Streaming DSD Audio: Up to DSD5.6
- FLAC HD 192/24: Yes
- WAV 192/24: Yes
- ALAC 192/24: Yes
- AirPlay 2: Yes
- Roon Tested: Yes
- Spotify Connect* / Tidal* / Deezer* / others*: Yes / Yes / Yes / Yes
- Amazon Prime Music* / Pandora*: Yes / Yes
Connectivity
- Ethernet: Yes
- Wi-Fi: Yes
- Bluetooth: Yes
- Bluetooth Headphone transmission: Yes
HDMI
- Front/rear HDMI inputs: 6 (3x 8K) / 0
- HDMI max Resolution (8k / 4k): 8k/60 – 4k/120
- HDMI main/zone outputs: 1 / –
- HDMI to HDMI scaler: Up to 8K 60/50
- HDCP2.3 support: Yes
- HDMI: 8K / 4K / CEC / eARC: Yes / Yes / Yes / Yes
- HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG: Yes / Yes / Yes / Yes
- HDMI: ALLM / QMS / QFT / VRR: Yes / Yes / Yes / Yes
- Standby pass-through mode: Yes
Multiroom
- Multiroom zones: 2
- Audio source zone: HDMI/opt, coax, network, USB analog: Yes (2ch) / Yes (2ch) / Yes / Yes
- HEOS Multiroom integrated: Yes
- TV Sound grouping: Yes
- Main room multichannel audio – Zone stereo downmix: Yes
- Zone output: Speaker or preamplification: Yes / No
- Web browser User Interface: Yes
- IP Control / RS232 Control / Web Control / App Control: Yes / No / Yes / Yes
Other Features
- Speaker calibration by microphone: Audyssey MultEQ XT
- Fluorescent display: 1 line
- Hybrid GUI: Yes
- Multiple GUI languages: 9
- Voice control – Works with Amazon Alexa: Yes
- Voice control- Google Assist / Apple Siri: Yes
- Setup Assistant: Yes
- Quick Select Plus / Quick Select: Yes / No
- Network/USB updates: Yes / Yes
- Adjustable crossover frequencies: Yes
- Optimized and redirected bass: Yes
- ECO Mode: Yes
- Auto power off: Yes
- Scheduled power off: Yes
