Sale!

FiiO M17

UGS: M17Brand:

Original price was: 2 499,99 $.Current price is: 1 699,00 $.

Only 1 left in stock

Description

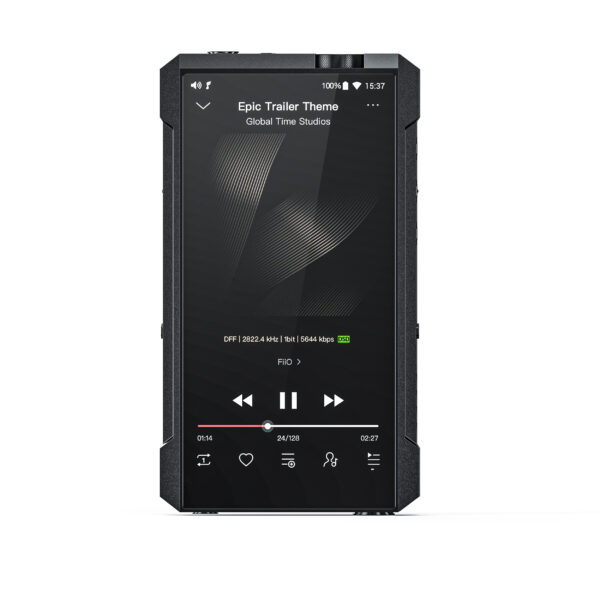

Desktop-Class Portable Player

The desktop-class M17 is an entirely new chapter of FiiO digital audio players. Its desktop-grade DAC, amplification, and power supply give it the output power and sound quality to rival even highly-regarded desktop systems–but in a portable package.

Dual ES9038PRO DACs

The left and right audio channels each contain a desktop-class, 8-channel ES9038PRO flagship DAC. This means that each audio channel has 8 parallel outputs.

Dual THX AAA-788+ amps

FiiO and THX jointly developed the exclusive THX AAA-788+, an upgraded version of the original op-amp. Compared to the original, output power is increased by 225% up to 3000mW per channel with a lower output impedance–allowing it to effortlessly power all kinds of headphones.

4 gain levels

Under battery power, there are four gain levels: low, medium, high, and headphone mode. When under DC mode, the enhanced over-ear headphone mode gain is unlocked for a truly desktop level of amplification gain. In balanced output, the gain can get as high as +16dB.

Desktop-level connectivity

Thanks to its larger size, the M17 features a variety of connectivity options, including: USB 2.0, USB 3.0, RCA coaxial input and output, 2.5mm balanced out, 3.5mm headphone out, 6.35mm headphone out, and 4.4mm balanced headphone out.

Dual power supplies

The M17 contains two power supplies–a battery power supply and a power supply powered by external DC power. The battery power supply allows you to use the M17 in situations where there is no access to a power output. Under DC power supply, voltage in the analog circuit is increased by 35%.

Desktop-tier heat dissipation

With exceptional audio quality comes large power consumptions, necessitating effective heat dissipation. Not only are “H” type heat dissipation and VC liquid cooling technologies used, the M17’s 151g unibody aluminum alloy frame also effectively transfers heat out of the device.

Digital-analog separation for reduced interference

Within the M17 are 17 PCBs with immersion gold finish, with the analog and digital sections physically separated by being on two different boards. 7 high-conductivity copper alloy shields also provide shielding to greatly reduce internal and external electromagnetic interference on analog audio signals within the M17.

5.99” screen

A larger screen allows you to more easily enjoy stunning visuals. Enjoy the 5.99”, 1080 x 2160 FHD+ 18:9 hi-def incell display.

Huge 9200mAh battery

The massive 9200mAh battery allows for battery life up to 10 hours on the M17. It can be charged either through USB or through DC from an external AC adapter.

Product highlights

  • Dual ES9038PRO DAC chips
  • Dual THX AAA-788+ amps
  • Dual power supplies
  • 2 volume control modes
  • Qualcomm QCC5124 Bluetooth chip
  • XMOS XUF208
  • Supercapacitor
  • 5.99” incell display
  • 5 audio output interfaces
  • Dual USB Type-C connectors
  • 9200 mAH battery
  • RGB ambient light

Features & Specifications

CPU model: Qualcomm Snapdragon 660
DAC: AK4497EQ*2
Amp: THX AAA-78*2
Screen: 5.5 inch 1440×720 incell touch screen
Dimensions: 136.6×75.7×17.6mm
Weight: About 310g (Black)/405g (Stainless steel)
USB: TYPE C Two-way USB3.0
Battery: 6000mAh High-voltage quick-charging Li-polymer battery
Battery life: 11.5h for PO;10 h for BAL
Charging time: About 3h(QC4.0 quick charge)
PO Output power: 206mW(32Ω)
BAL Output power: 588mW(32Ω)
Frequency response: 5Hz~90kHz(-5dB)
SNR: ≥120dB
THD+N: <0.0006%(A-wt.)
Noise floor: PO<2μV;BAL<3μV
Output impedance: PO≤1Ω;BAL≤2Ω
Max output specification: 384kHz-32bit;DSD256
Supported third party apps: Apple Music, Google Play, etc
