Moon 230HAD

SKU: MOON-230HAD Categories: , Brand:

Description

Design features

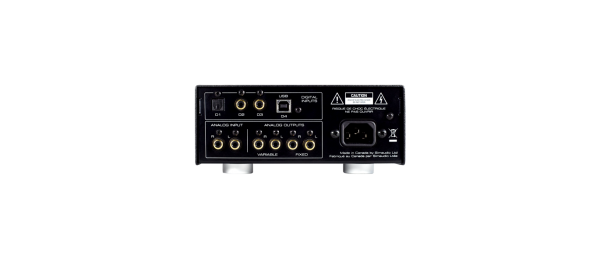

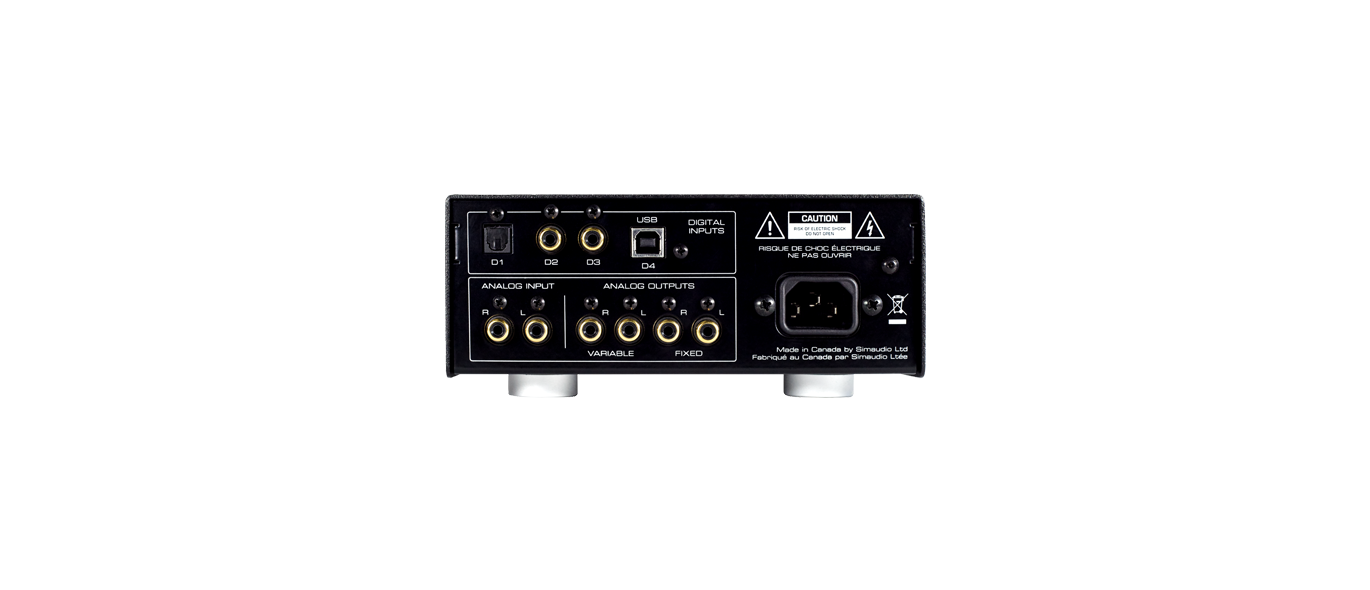

  • Inputs include 1 single-ended on rear-mounted RCA’s and 1 single-ended on 1/8” jack located on the front panel.
  • Outputs include a ¼” TRS headphone jack, as well as both fixed and variable single-ended line-level RCA stereo pairs.
  • Fully asynchronous DAC with four (4) digital inputs (S/PDIF x 2, TosLink x 1 & USB x 1) allowing for use with virtually any digital source; Supports DSD64, DSD128 and DSD256 (USB input only); Supports PCM up to 24-bit/192kHz (all inputs) and 32-bit/384kHz (USB input only).
  • Pure analog amplifier using a transconductance circuit.
  • An oversized power supply using 1 toroidal transformer in conjunction with 8 stages of DC voltage regulation.
Specifications
  • Output power per channel @ 600 / 300 / 50Ω
    100mW / 200mW / 1W
  • Headphone Impedance
    20 – 600Ω
  • Frequency Response (audible)
    20Hz – 20kHz ±0.1dB
  • Frequency Response (full range)
    5Hz – 100kHz +0/-3dB
  • THD @ 1kHz, 0dBFS (A-weighted)
    0.005%
  • Intermodulation distortion
    0.005%
  • Signal-to-noise Ratio
    115dB
  • Crosstalk
    -80dB
  • Input / Output impedance
    22KΩ / 1.25Ω
  • Shipping weight
    6.2 lb / 2.8 kg
  • Dimensions (width x height x depth)
    7.0 x 3.0 x 11.0 in
  • 17.8 x 7.6 x 28.0 cm
